What drainage, grading, or stormwater requirements apply to multi-lot development?

Drainage, grading, and stormwater management are essential regulatory components for multi-lot developments. They ensure that rainwater runoff is effectively controlled to prevent flooding, erosion, property damage, and environmental degradation. Local planning and environmental authorities enforce these standards through design requirements, technical reviews, and construction obligations before and after subdivision approval.

1. Grading and Site Slope Requirements

• Each lot must be graded to direct surface runoff away from structures and into designated drainage paths.

• Slopes should:

  • Maintain positive drainage toward roads or storm drains.

  • Avoid water pooling or backflow into an adjoining parcel.s

  • Be limited to 3–5% around buildings and controlled in larger terrain transitions.ns.

• Grading plans must include:

  • Existing and proposed contour lines

  • Cut-and-fill volumes

  • Elevation benchmarks and slopes at key points (e.g., plot edges, roads)

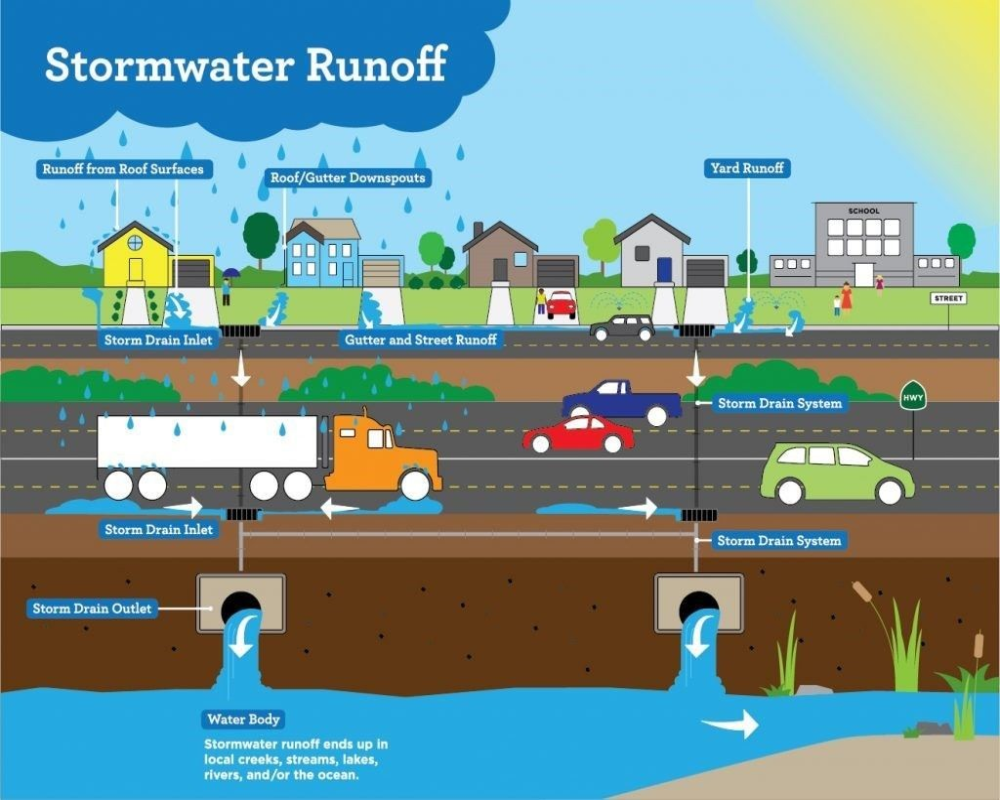

2. Stormwater Collection and Conveyance

• A centralized drainage network must collect runoff from all lots and roadways.

• Infrastructure includes:

  • Open or closed surface drains, swales, or stormwater channels

  • Underground pipe systems leading to municipal or natural discharge points

  • Manholes, catch basins, and inspection chambers are placed at regular intervals.s

• Pipe diameters, gradient, and material must comply with municipal or Indian Roads Congress (IRC) standards.

• Roadside drains must not discharge directly onto neighboring plots or public roads without treatment.


3. Detention, Retention, and Recharge Systems

• Developments exceeding a certain area (e.g., 0.5 hectares or more) may be required to install:

  • Detention basins (temporary holding areas to reduce peak discharge)

  • Retention ponds (permanent basins for gradual infiltration or reuse)

  • Percolation pits or recharge wells to promote groundwater replenishment

• These systems are designed based on:

  • Rainfall intensity and runoff coefficients

  • Soil permeability

  • Available open space

• Rooftop rainwater harvesting is often mandated under building bylaws.


4. Regulatory Design Submissions

• Developers must submit:

  • Drainage layout drawings with flow directions and outlet points

  • Hydrological calculations proving pre- and post-development runoff control

  • Cross-sectional details of drains, embankments, and slopes

  • Stormwater discharge permissions if releasing into public drains or water bodies

• Plans are reviewed by the local town planning, engineering, or public works department.


5. Construction, Inspection, and Maintenance Conditions

• Drainage and grading works must be executed before building permits are granted for individual lots.

• Regular inspections are conducted to verify:

  • Slope stability

  • Functional flow of water

  • Integrity of drainage structures

• Post-approval, the developer may be required to:

  • Maintain the system for a defined period.

  • Transfer responsibility to local authorities or a registered maintenance body.y

  • Submit as-built drawings for final compliance verification. on


Failing to comply with these requirements can result in:

• Withheld occupancy certificates

• Penalties for non-conformance

• Long-term liabilities for flooding or environmental damage


Proper design, supported by licensed civil engineers or drainage consultants, ensures compliance and protects the investment value of each subdivided lot.
