Detailed Layout Planning for EV and Gas Stations
Introduction
The layout planning of electric vehicle (EV) charging stations and gas stations is a critical aspect of site development, directly influencing traffic flow, safety, operational efficiency, customer experience, and future scalability. Although both types of stations serve the mobility sector, their spatial needs and infrastructure design vary significantly due to differences in fueling technology, dwell times, and utility requirements. A well-designed layout ensures seamless ingress and egress for vehicles, minimizes wait times, supports compliance with safety and zoning regulations, and optimizes the use of available land. Proper layout planning also allows integration of supporting services such as retail spaces, rest areas, or co-located amenities, enhancing the commercial viability of the project.
Site Access and Traffic Flow Management
Effective site access and internal traffic flow are foundational components of station layout planning. Gas stations require wide entry and exit points that accommodate two-way traffic, including maneuverability for fuel trucks and delivery vehicles. Pump islands are arranged in parallel rows or at angles to support efficient vehicle stacking and reduce congestion. For EV stations, traffic design must consider longer dwell times and typically includes wider parking bays with designated entry and exit lanes. DC fast chargers are often arranged in linear or diagonal patterns to allow easy alignment for vehicles with rear or side charging ports. Clear signage, directional arrows, and curb cuts are necessary for both station types to ensure intuitive movement. Drive aisles should be a minimum of 24 feet wide to support two-way vehicle traffic and emergency access. Proper flow planning prevents traffic bottlenecks, enhances safety, and accommodates peak usage periods.
Fueling and Charging Zone Placement

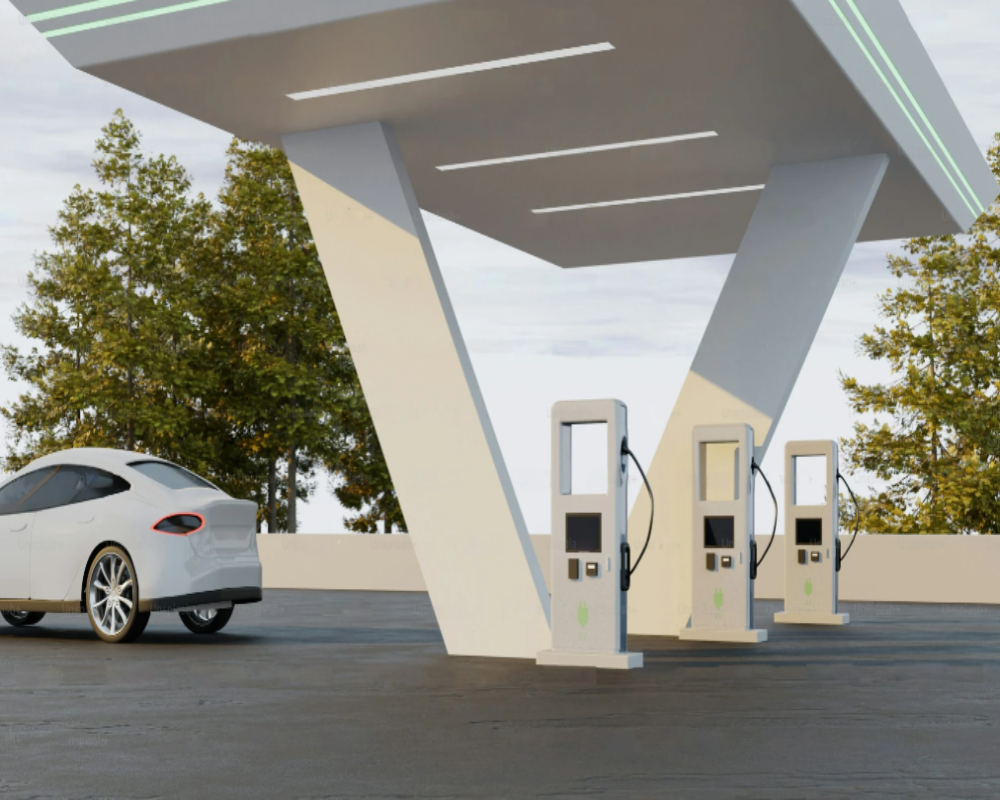

The location of fueling or charging equipment must be central to station layout while maintaining adequate separation for safety and convenience. At gas stations, dispensers are typically placed under canopies, arranged in one or more rows with three to five feet between pump islands and sufficient clearance for vehicle doors and pedestrian movement. Storage tank fill ports are located to the side or rear of the station for fuel deliveries. For EV charging stations, chargers should be positioned close to site entrances but away from primary traffic routes to allow uninterrupted charging. Each charger requires a dedicated parking space with protective bollards, cable management systems, and clear pavement markings. Stations offering both Level 2 and Level 3 charging should zone them separately to match expected dwell times. EV layouts also benefit from installing chargers in groups or “charging hubs” to create a sense of convenience and availability.
Utility Infrastructure and Equipment Zones
The integration of utility infrastructure is a major factor in layout planning, particularly for electrical systems and fuel storage. In gas stations, underground fuel storage tanks must be placed with adequate clearance from property lines and structures, often under driveways or unbuilt sections of the site. Associated infrastructure like fuel lines, vapor recovery systems, and leak detection panels must be installed with minimal interference to vehicle paths. Electrical panels, transformers, and meter boxes should be positioned in service zones with easy access for maintenance. For EV stations, the location of power infrastructure—such as utility transformer pads, switchgear, and conduit lines—is essential for operational efficiency. These components should be placed away from customer access areas yet remain serviceable for utility technicians. Including space for future upgrades, such as solar panels or battery storage systems, adds flexibility and aligns with sustainable energy goals.
Ancillary Facilities and Customer Amenities
Including retail stores, restrooms, air and water dispensers, and waiting areas adds value and convenience to both gas and EV stations. Gas stations often feature convenience stores or mini-marts placed at the rear or side of the site with direct pedestrian access from pump islands. Car wash facilities are typically located behind the main station building to avoid disrupting primary fueling zones. For EV stations, customer dwell time is longer, making lounge areas, vending machines, coffee kiosks, and shaded seating areas important components of the layout. These amenities should be visible from the charging bays and easily accessible without disrupting vehicle circulation. Trash receptacles, lighting fixtures, and landscaping features must be incorporated thoughtfully to enhance site aesthetics while maintaining cleanliness and visibility.
Safety, Compliance, and Scalability Considerations
Safety and compliance guide many elements of station layout, from emergency access to fire code spacing requirements. Gas stations must maintain setback distances between dispensers, tanks, and structures, while also adhering to NFPA (National Fire Protection Association) guidelines. EV stations must ensure ADA-compliant charger accessibility and barrier-free movement for users. Emergency shutoff buttons, fire extinguishers, and signage must be clearly visible and accessible in both environments. Scalability is another key consideration—layouts should allow for future installation of additional chargers, fuel dispensers, or new energy infrastructure such as hydrogen pumps or solar canopies. Utility conduits should be oversized and stubbed for expansion, and open pavement areas can be reserved for future construction phases. Thoughtful layout planning ensures that the station evolves with growing demand and emerging technology without the need for costly redesigns.
Conclusion
Detailed layout planning is essential to the success of both EV charging stations and gas fueling facilities, influencing operational flow, user satisfaction, safety, and long-term profitability. By carefully considering access routes, equipment placement, utility integration, customer amenities, and regulatory compliance, developers can design stations that serve present-day needs while anticipating future trends. Whether catering to quick refueling or longer EV charging sessions, the site layout must facilitate comfort, efficiency, and scalability. In an increasingly competitive and regulated energy landscape, investing in intelligent and adaptable station design is not only a best practice—it is a strategic imperative that positions fueling assets for sustained performance and relevance.
